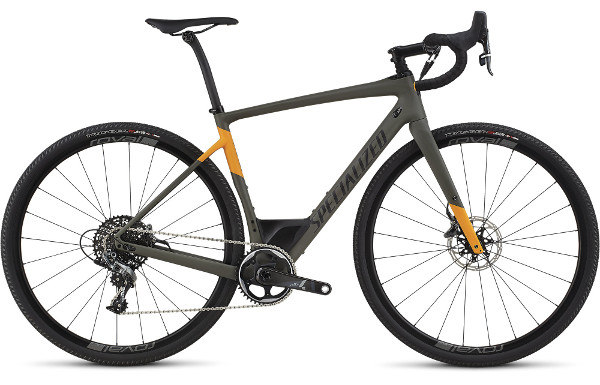

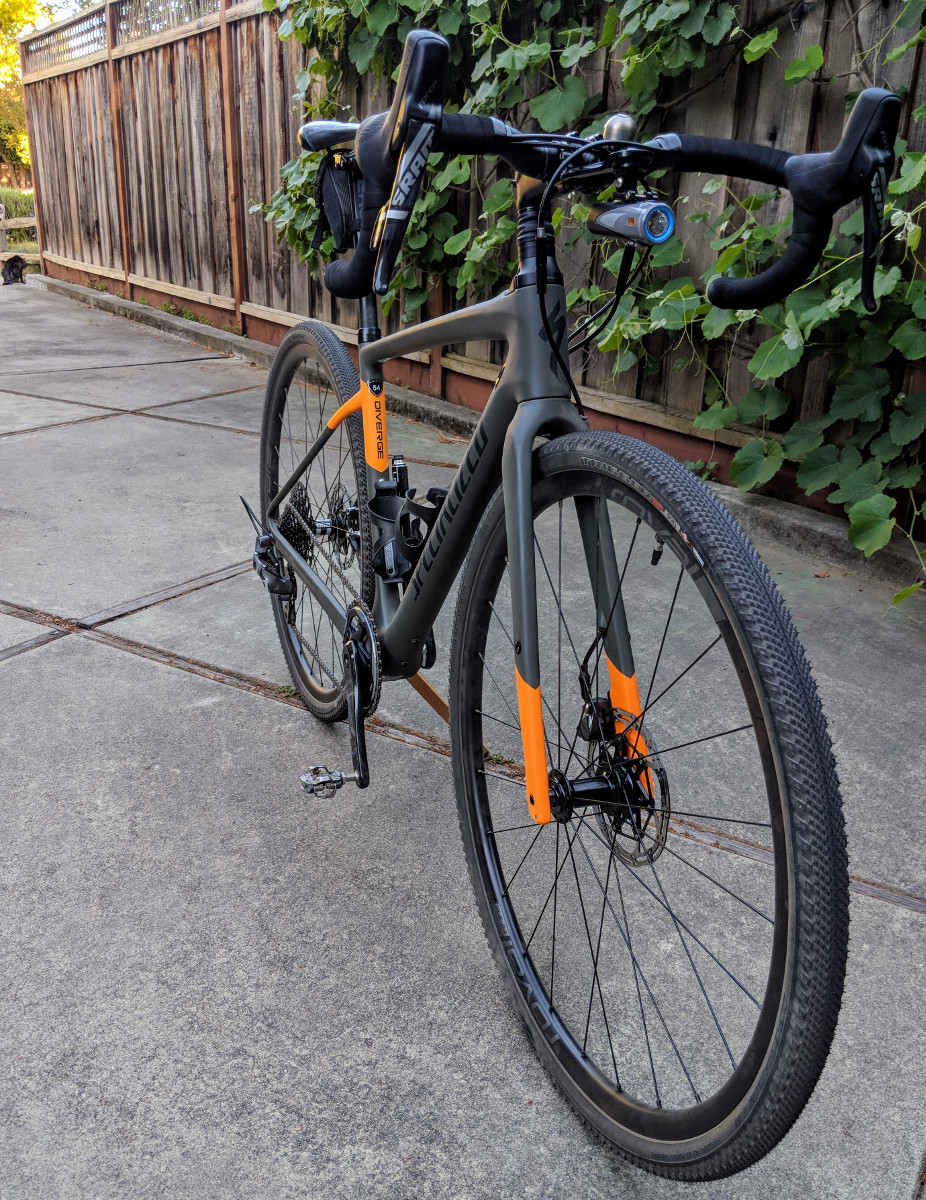

2018 Specialized Diverge Expert

SRAM Force CX-1 gruppo
Specialized Future Shock
Ergon CF3 seatpost
19.8 lbs, 21.3 lbs with lights, bag & pump

Size                    54
Crank Length            172.5mm
Stem Length             100mm
Seatpost Length         400mm
Saddle Width            143mm
Handlebar Width         420mm
Reach                   373mm
Top Tube Length, Horiz  549mm
Stack                   592mm
Wheelbase               1004mm
Chainstay Length        421mm
Front Center            597mm
BB Drop                 85mm
BB Height               265mm
Seat Tube Angle         73.5°
Head Tube Angle         71.9°
Seat Tube Length        473mm
Head Tube Length        158mm
Bike Standover Height   752mm
Fork Rake/Offset        50mm
Fork Length, Full       390mm
Trail                   62mm

Technical Specifications

Drivetrain

CHAIN	KMC X11EL, 11-speed w/ Missing Link™
BOTTOM BRACKET	SRAM BB386, 68mm, no spacer
CRANKSET	SRAM Force 1
SHIFT LEVERS	SRAM Force 1 hydraulic, 11-speed
CASSETTE	SRAM XG 1150, 11-speed, 10-42t
CHAINRINGS	42T X-Sync
REAR DERAILLEUR	SRAM Force 1, long cage, 11-speed

Cockpit

SADDLE	Body Geometry Phenom Comp, Adaptive Edge design, Hollow Cr-Mo rails, 143mm
TAPE	S-Wrap w/ Sticky gel
SEATPOST	S-Works FACT carbon, 20mm offset
STEM	Specialized, 3D forged alloy, 4-bolt, 7-degree rise
HANDLEBARS	Specialized Expert Hover, alloy, 75x125mm

Wheels

FRONT TIRE	Specialized Trigger Pro, 60 TPI, 2Bliss Ready, folding bead, 700x38mm
REAR TIRE	Specialized Trigger Pro, 60 TPI, 2Bliss Ready, folding bead, 700x38mm

Brakes

FRONT BRAKE	SRAM Force, 160mm hydraulic disc
REAR BRAKE	SRAM Force, 160mm hydraulic disc

Frameset

SEAT BINDER	Alloy, 31.2mm
FORK	Specialized FACT carbon, flat mount disc, 12x100mm thru-axle
FRAME	Specialized FACT 9r carbon, Open Road Geometry, 12x142mm thru-axle, Future Shock Progressive suspension, 20mm of travel, flat mount disc, BB386
