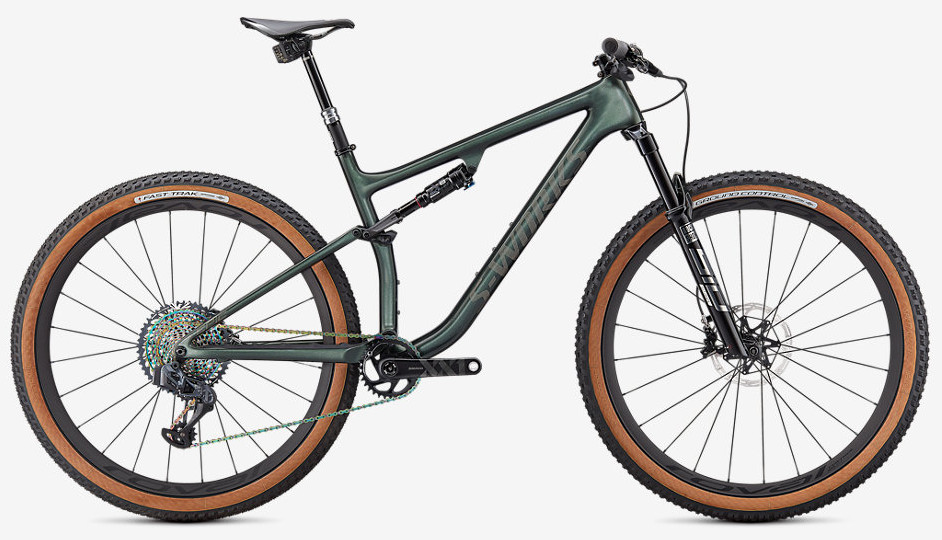

2021 Specialized S-Works Epic EVO

Nov 27, 2020

Purchased lightly used from a friend-of-a-friend Thanksgiving week of 2020.

Wretched excess in mountain bike form
SRAM Eagle XX1 AXS drivetrain
120mm front travel, 110mm rear
1250g Roval Control SL wheels
Electronic dropper post
22.5 lbs with seat, pedals, and cages

You can download a full-res version by clicking on the icon at the top right when viewing a photo (way easier on a "real" computer versus a phone). These photos (like all my photos) are provided under the Creative Commons BY-SA license, which means (roughly) that you can use them as you like so long as you give me credit.
If you're unhappy that a photo of you is here drop me an email at dirk@otisbean.com. If you're sad that your photo isn't here, sorry.

Technical Specifications

Frameset

Frame	S-Works FACT 12m Carbon, Progressive XC Geometry, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel
Seat Binder	Specialized Alloy, 34.9mm, Titanium bolt

Suspension

Rear Shock	RockShox SID LUXE ULTIMATE, Rx XC Tune, Two Position, Rebound Adjust, 190x40mm
Fork	Rockshox SID ULTIMATE, Charger Race Day Damper, Debon Air, 15x110mm, 44mm offset, 120mm Travel

Cockpit

Stem	S-Works SL, alloy, titanium bolts, 6-degree rise
Handlebars	S-Works Carbon XC Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 740mm, 31.8mm
Saddle	Selle Italia SLR Superflow
Seatpost	RockShox Reverb AXS, 30.9, 1X remote, 150mm travel
Grips	Specialized Trail Grips

Brakes

Front Brake	SRAM G2 Ultimate, 4-piston caliper, 180mm disc
Rear Brake	SRAM G2 Ultimate, 4-piston caliper, 160mm disc

Drivetrain

Rear Derailleur	SRAM XX1 Eagle AXS
Shift Levers	SRAM AXS Eagle Controller
Chain	SRAM XX1 Eagle
Crankset	SRAM XX1 Eagle, Boost™ 148, DUB, 170/175mm
Chainring	Steel, 32T

Wheels

Rims	Roval Control SL, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 24h
Front Hub	Roval Control SL, DT Swiss Internals, Ceramic Bearings, 6-bolt, 15mm thru-axle, 110mm spacing, Torque caps, 24h straight pull t-head
Rear Hub	Roval Control SL, DT Swiss 180 Internals, DT Swiss Ratchet EXP, Ceramic bearings, 12mm thru-axle, 148mm spacing, 24h
Spokes	DT Swiss Aerolite straight pull T-head, 294mm
Nipples	DT Swiss Pro Lock alloy
Tires	Ground Control, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"

Geometry - Size Large

Crank Length      175mm
Stem Length        60mm
Seatpost Length   150mm
Saddle Width      143mm
Handlebar Width   760mm
Reach             460mm
Top Tube Length   629mm
Stack             611mm
Wheelbase        1194mm
Chainstay         438mm
Front Center      759mm
BB Drop            36mm
BB Height         336mm
Seat Tube Angle   74.5°
Head Tube Angle   66.5°
Seat Tube         470mm
Head Tube         115mm
Standover Height  793mm
Fork Rake/Offset   44mm
Fork Length       530mm
Trail             114mm
